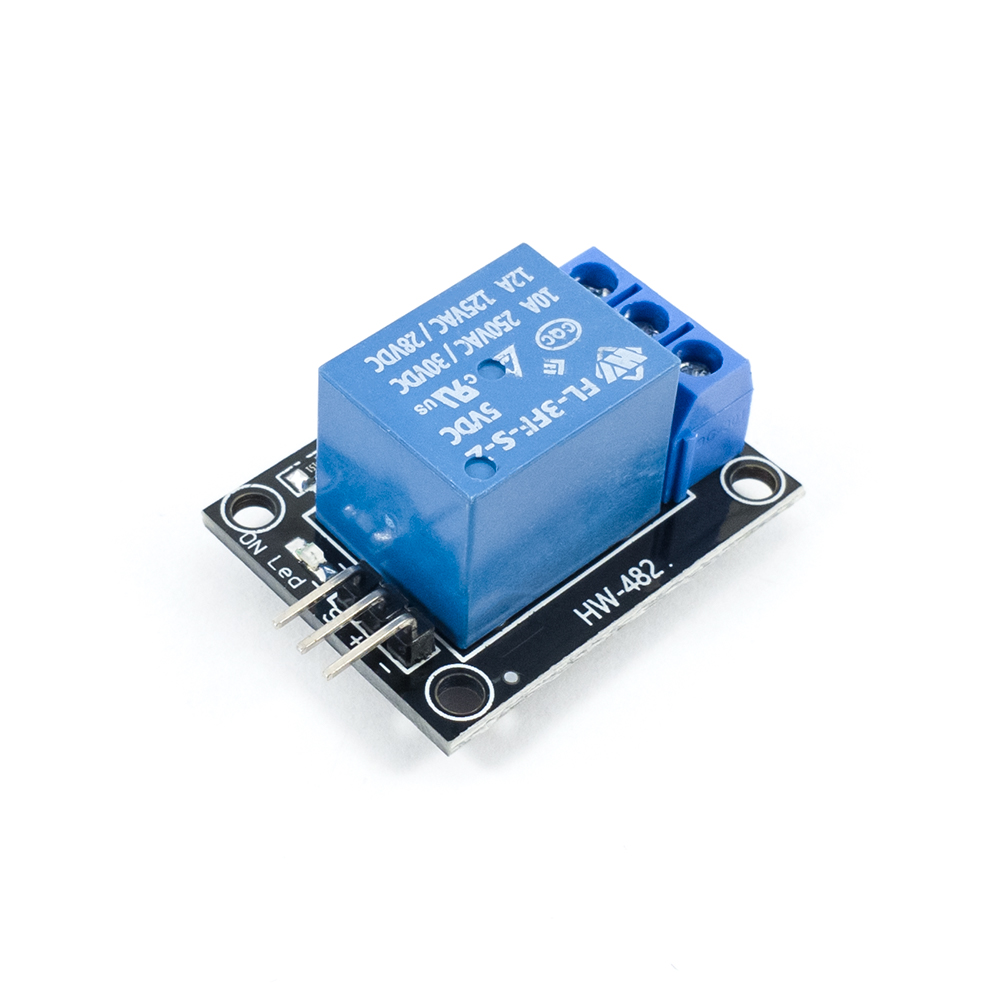

1-Channel 5VDC Relay Module Type 2

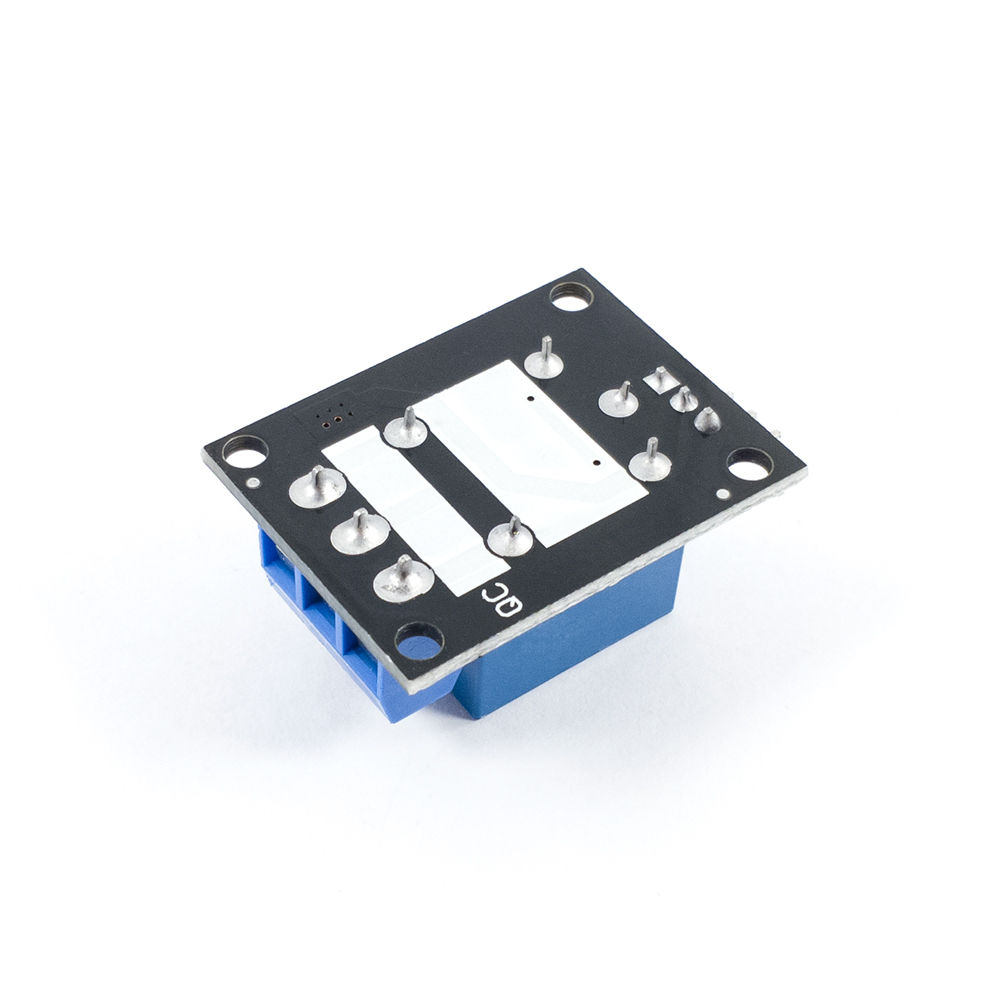

1-Channel 5VDC Relay Module Type 2 - Image 2

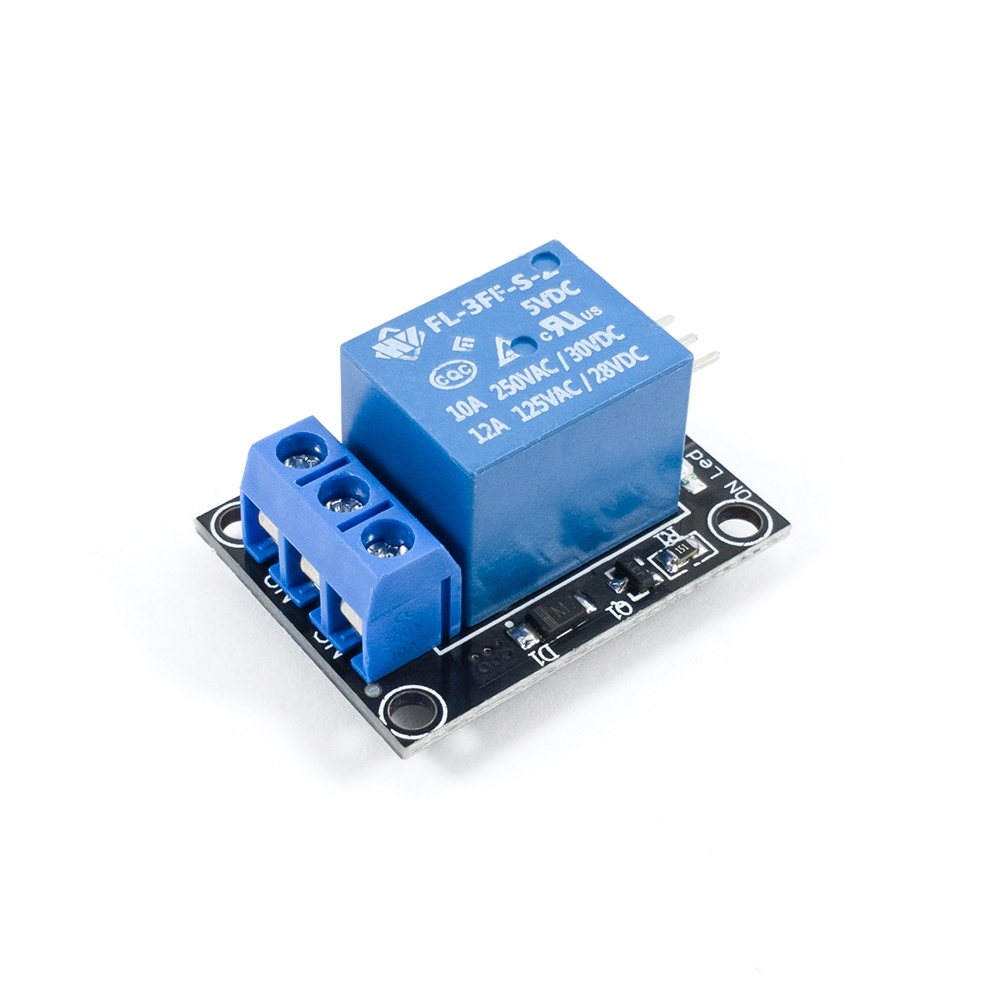

1-Channel 5VDC Relay Module Type 2 - Image 3

1-Channel 5VDC Relay Module Type 2

R20,02

Package Includes

  • 1x 1-Channel 5VDC Relay Module – Type 2

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 4ME3505 Category:

Description

Breakout board for a single 5VDC relay with connectors and LED indicators.

Features / Specs

  • Relay Contact Configuration: Single Pole Double Throw
  • Relay Contact Rating: 10A @ 250VAC; 10A @ 125VAC; 10A @ 30VDC; 10A @ 28VDC
  • Relay Coil Voltage: 5VDC
  • Flyback protection diode placed across the relay coil to suppress back EMF
  • LED to indicate that relay has been triggered / LED On = Relay Coil Energized
  • Control input “S” must be pulled high (+5VDC) to energize the relay coil
  • Dimensions: ~(33.5mm x 25.8mm x 19mm)
  • Mounting Hole Diameter: ~3mm
  • Mounting Hole Spacing (Centre to Centre): ~28.2mm / ~21.5mm
