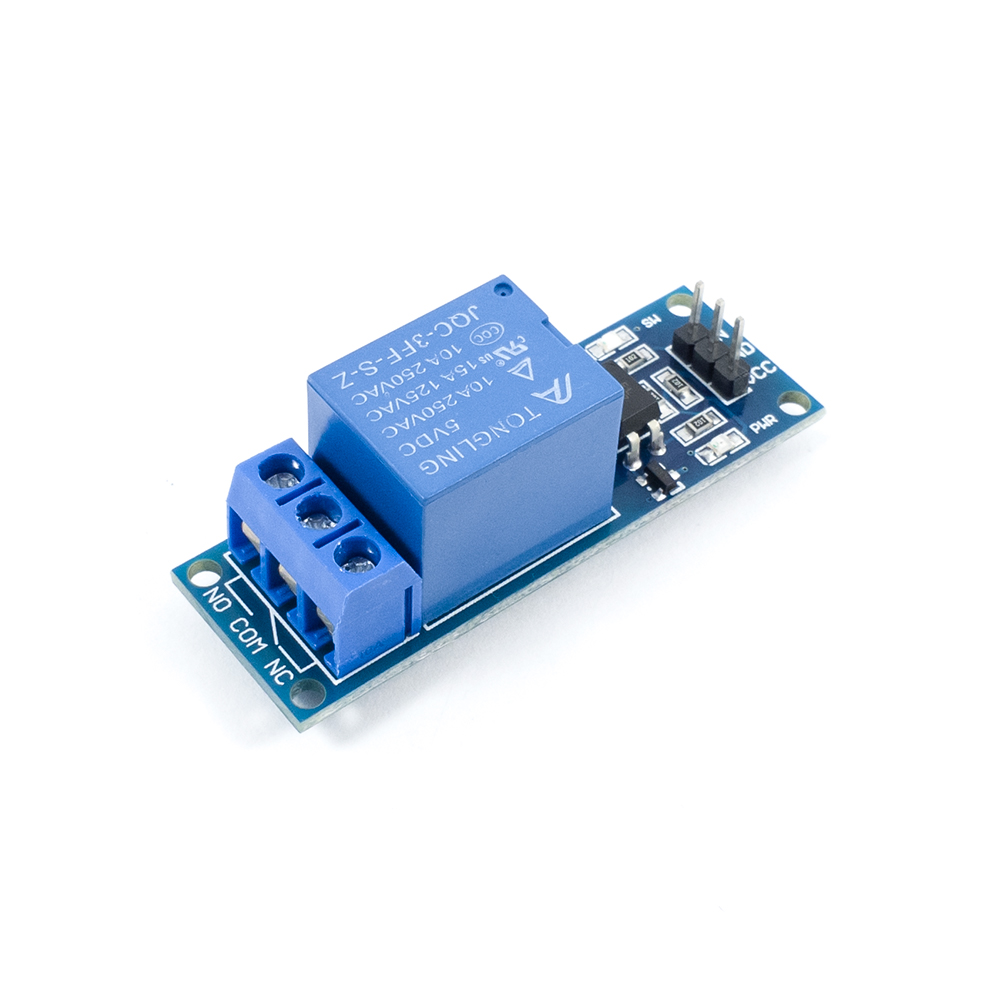

1-Channel 5VDC Relay Module With Opto Type 2

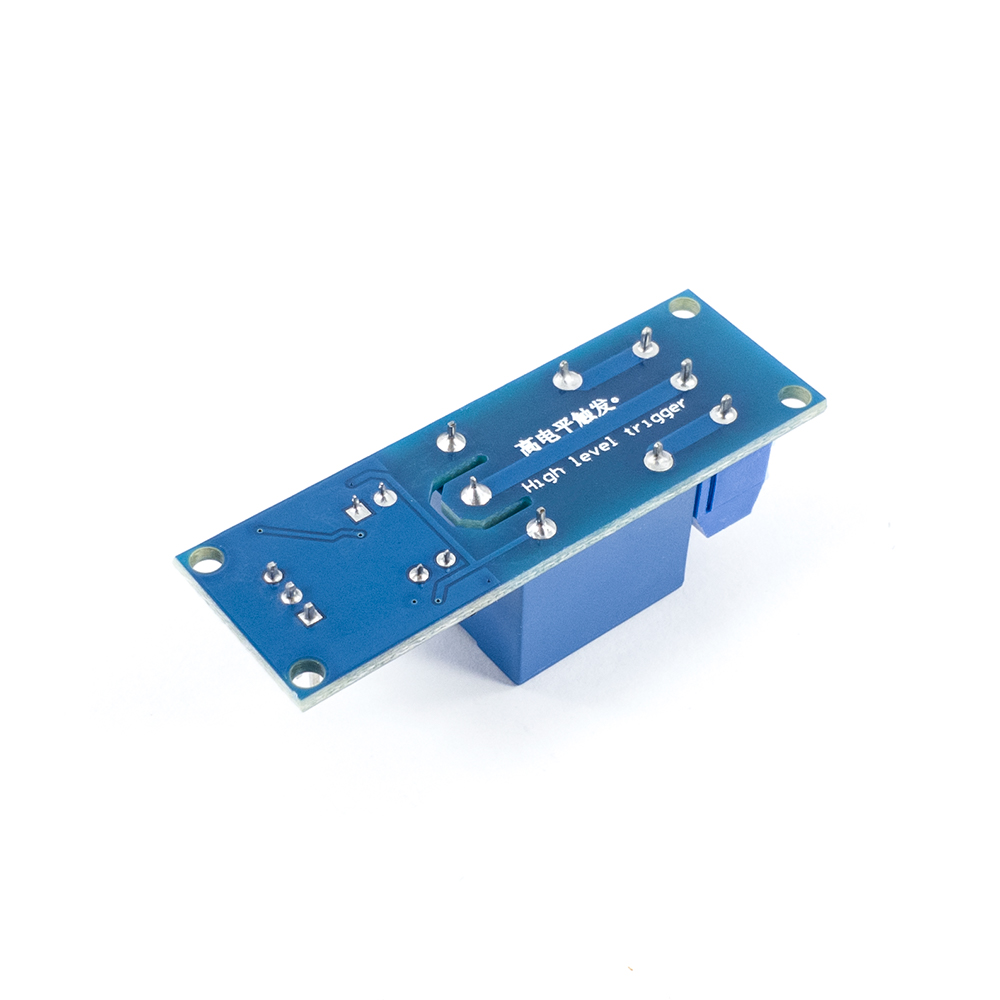

1-Channel 5VDC Relay Module With Opto Type 2 - Image 2

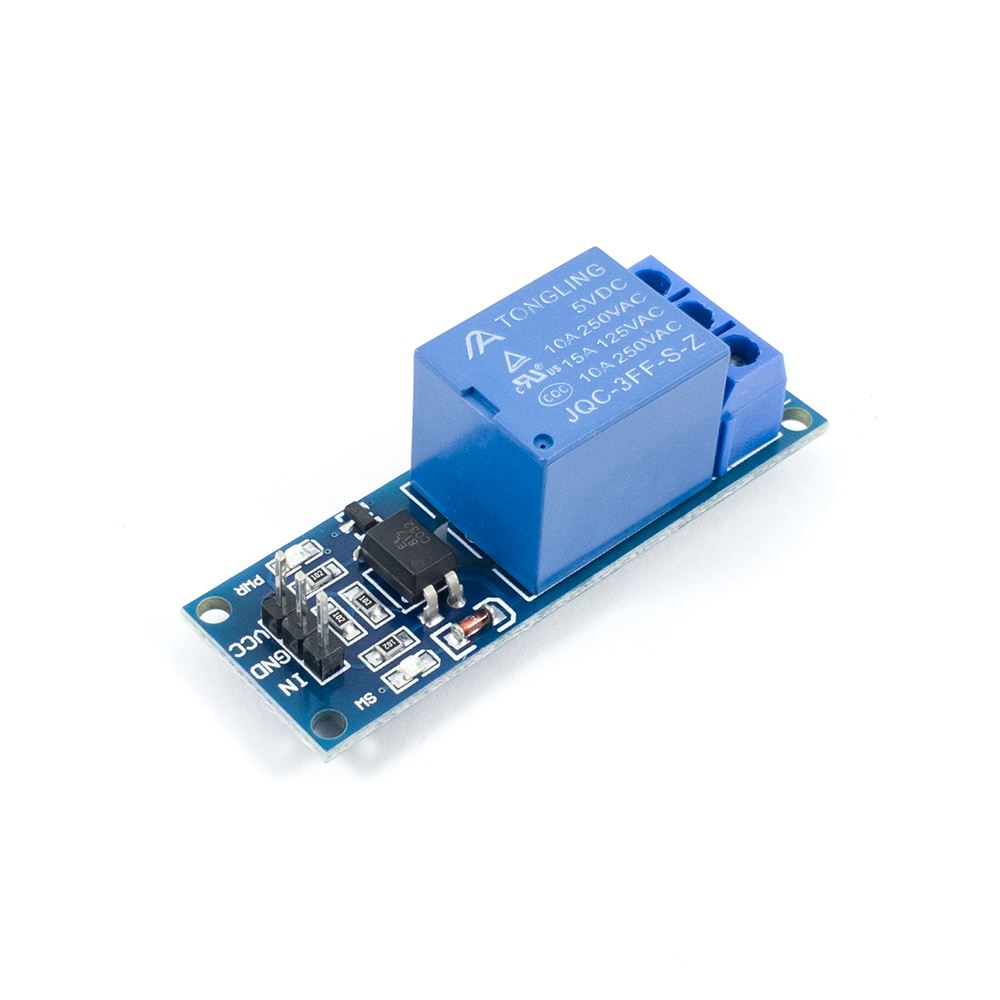

1-Channel 5VDC Relay Module With Opto Type 2 - Image 3

1-Channel 5VDC Relay Module With Opto Type 2

R42,19

Package Includes

  • 1x 1-Channel 5VDC Relay Module With Opto – Type 2

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 4ME3504 Category:

Description

Breakout board for a single 5VDC relay with connectors, opto-isolation and LED indicators.

Features / Specs

  • Relay Contact Configuration: Single Pole Double Throw
  • Relay Contact Rating: 10A @ 250VAC; 10A @ 125VAC; 10A @ 30VDC; 10A @ 28VDC
  • Relay Coil Voltage: 5VDC
  • Optocoupler Part Number: Sharp PC817C
  • Flyback protection diode placed across the relay coil to suppress back EMF
  • LED to indicate that relay has been triggered / LED On = Relay Coil Energized
  • Control input “IN” must be pulled high (+5VDC) to energize the relay coil
  • Dimensions: ~(53mm x 18.1mm x 19mm)
  • Mounting Hole Diameter: ~2.5mm
  • Mounting Hole Spacing (Centre to Centre): ~48.8mm / ~14mm
