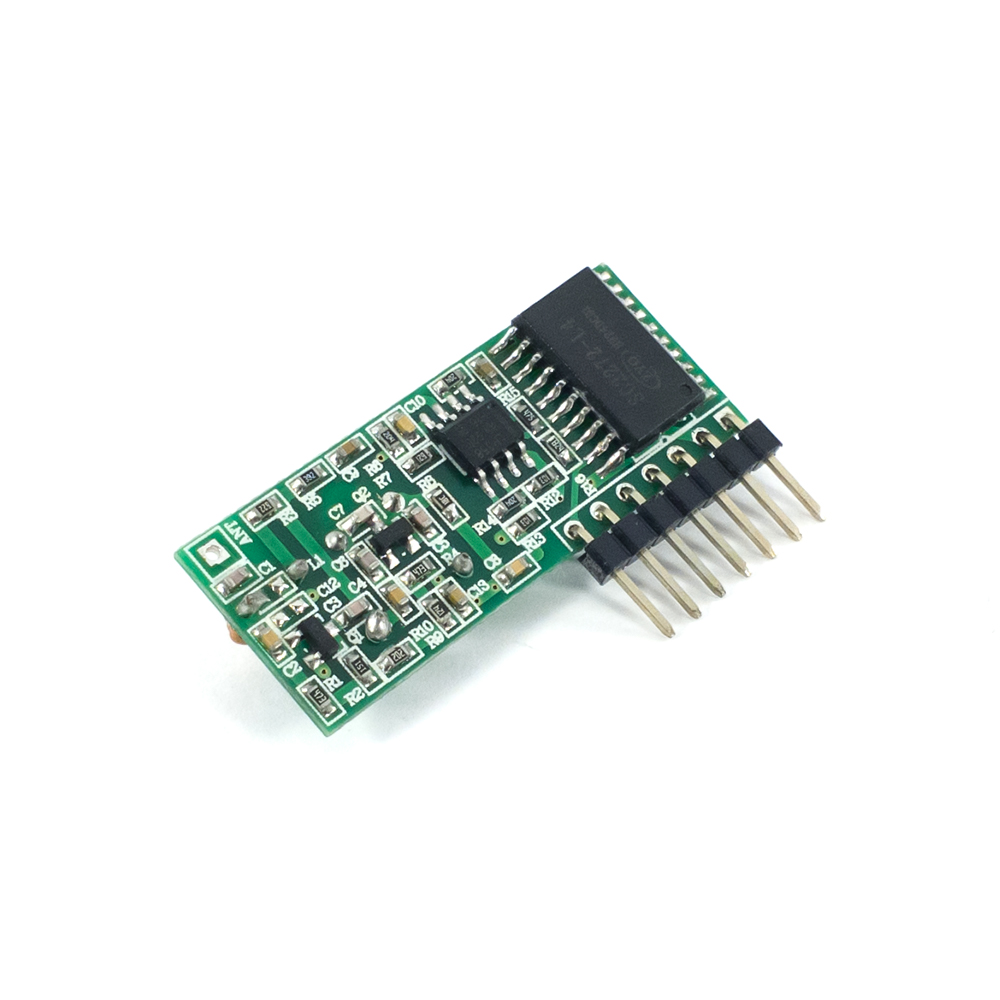

4 Channel Receiver – Fixed Code L4 433MHZ
4 Channel Receiver – Fixed Code L4 433MHZ - Image 2

4 Channel Receiver – Fixed Code L4 433MHZ

R66,92

Package Includes

  • 1x 4-Channel 433MHz Fixed Code L4 Receiver

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 3ME0309 Category:

Description

Features / Specs

  • Model: ZQD01
  • Receiver IC: PT2272-L4 / SC2272-L4 (Remote Decoder Chip)
  • Configuration: Manually Coded (Address selectable with solder jumpers)
  • Address Code: 8-Bit (Up to 256 different address codes)
  • Number of Channels: 4
  • Output Type: Latching
  • Operating Voltage Range: 5.0VDC
  • Operating Current (Typical): 4.0mA @ 5VDC
  • Operating Frequency: 433MHz
  • Modulation: ASK (Amplitude Shift Keying)
  • Receiver Sensitivity: As low as -105dBm

Compatible Transmitters / Remotes
