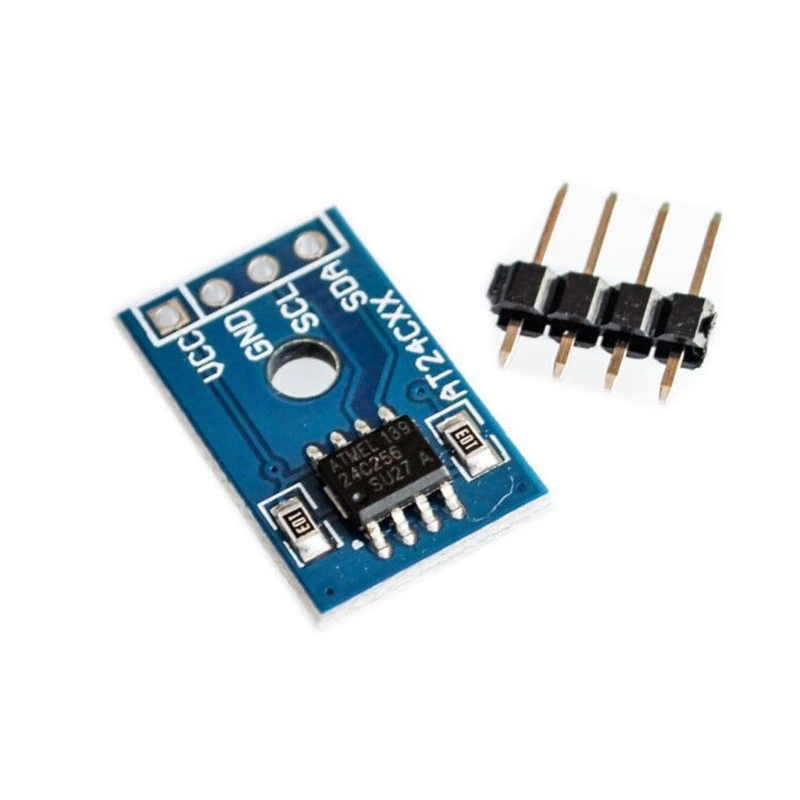

AT24C256 EEPROM Module – 32KB

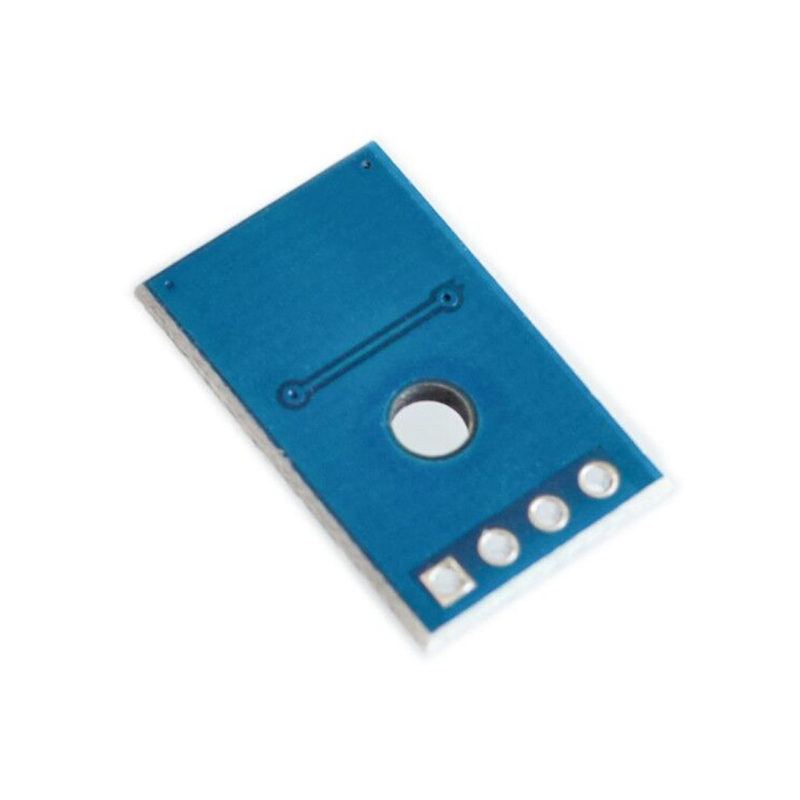

AT24C256 EEPROM Module – 32KB - Image 2

AT24C256 EEPROM Module – 32KB

R28,31

Package Includes

  • 1x AT24C256 32kB EEPROM Module
  • 1x 4-Way SIL Straight Pin Header

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 4ME4325 Category:

Description

Features / Specs

  • Model: AT24CXX
  • Main IC: Microchip AT24C256
  • Capacity: 256k-bit / 32k-byte
  • Operating Voltage: 1.7 – 5.5VDC
  • Operating Current (Typical): 1mA Read Current, 2mA Write Current, 6uA Standby Current
  • Comms Interface: I2C (Up to 1MHz)
  • Operating Temperature: -40°C to +85°C
  • More than 1 million erase/write cycles
  • More than 100 year data retention

Pin Description

  • VCC-> Supply Voltage (1.7 – 5.5VDC)
  • GND-> Ground
  • SCL-> I2C Serial Clock
  • SDA-> I2C Serial Data
