DEV-V40 – PIC18F45K22 Dev Board
R307,45
Package Includes
- 1x DEV-V40 Dev Board
Our Customer Guarantee:
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

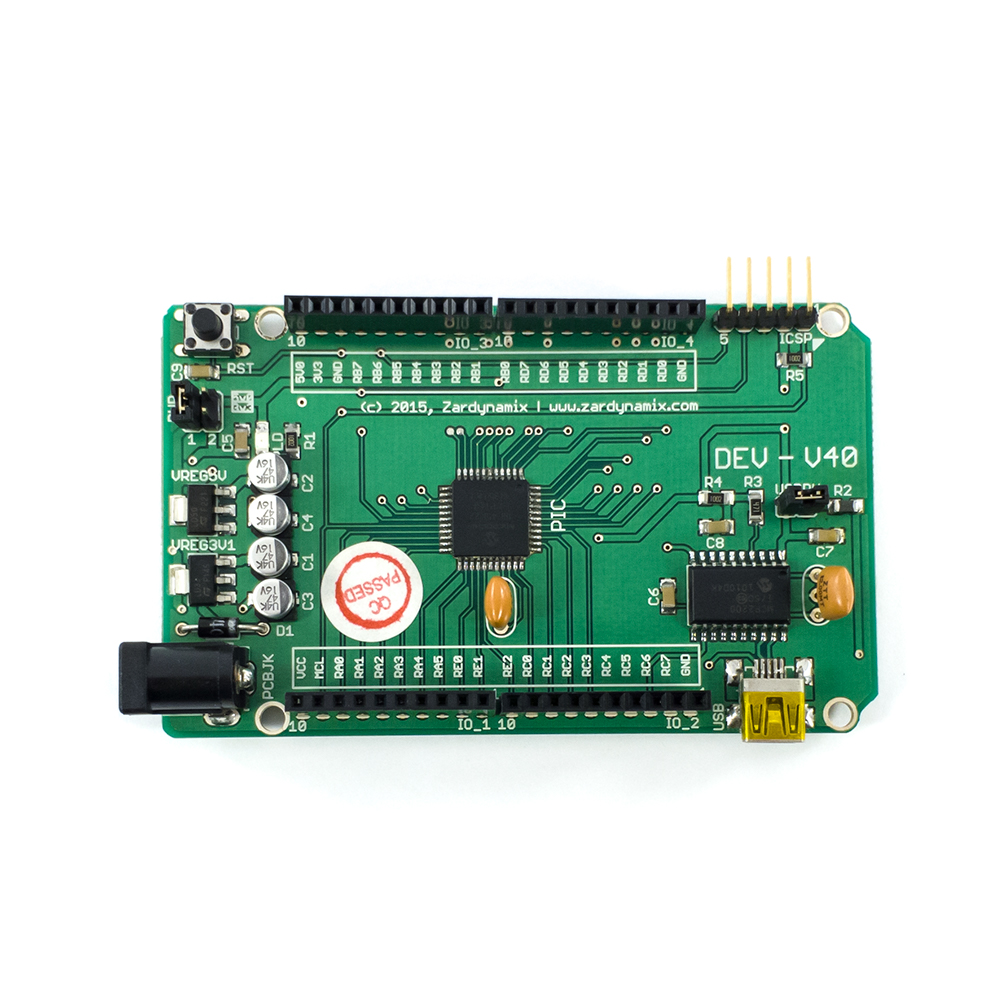

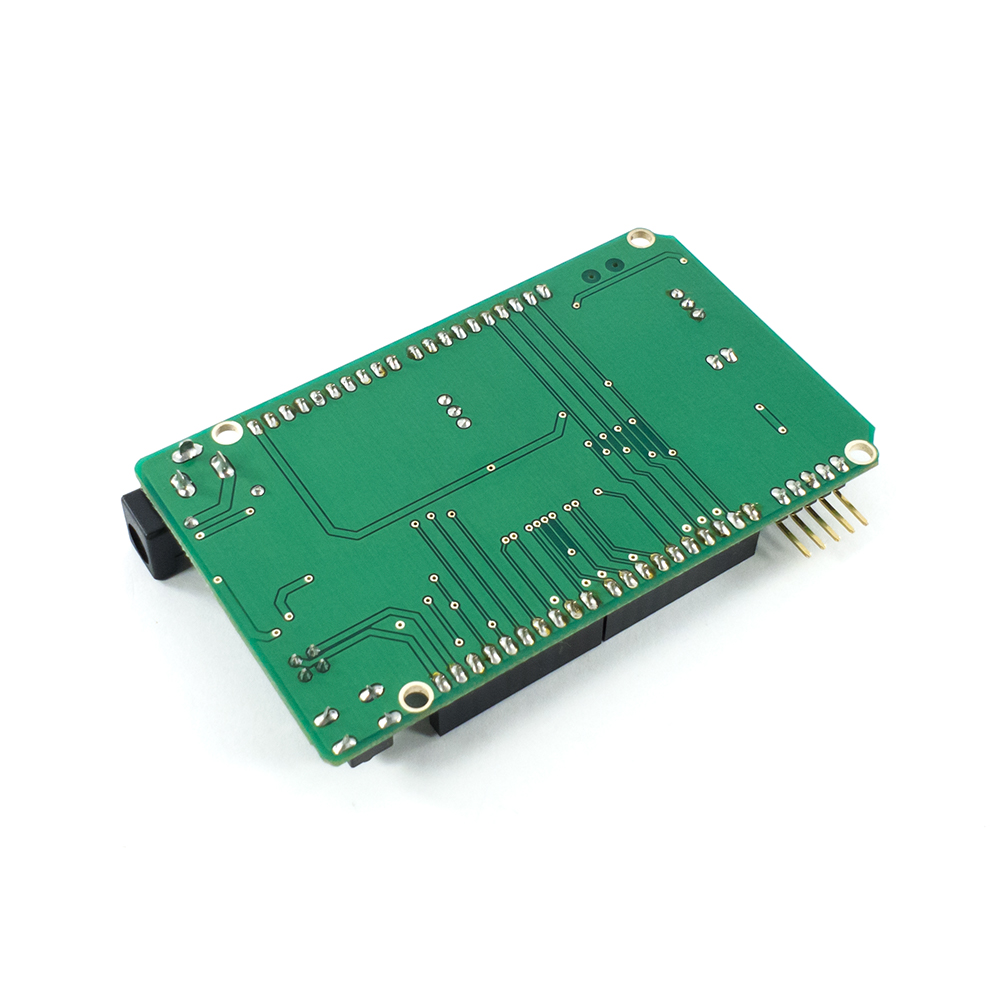

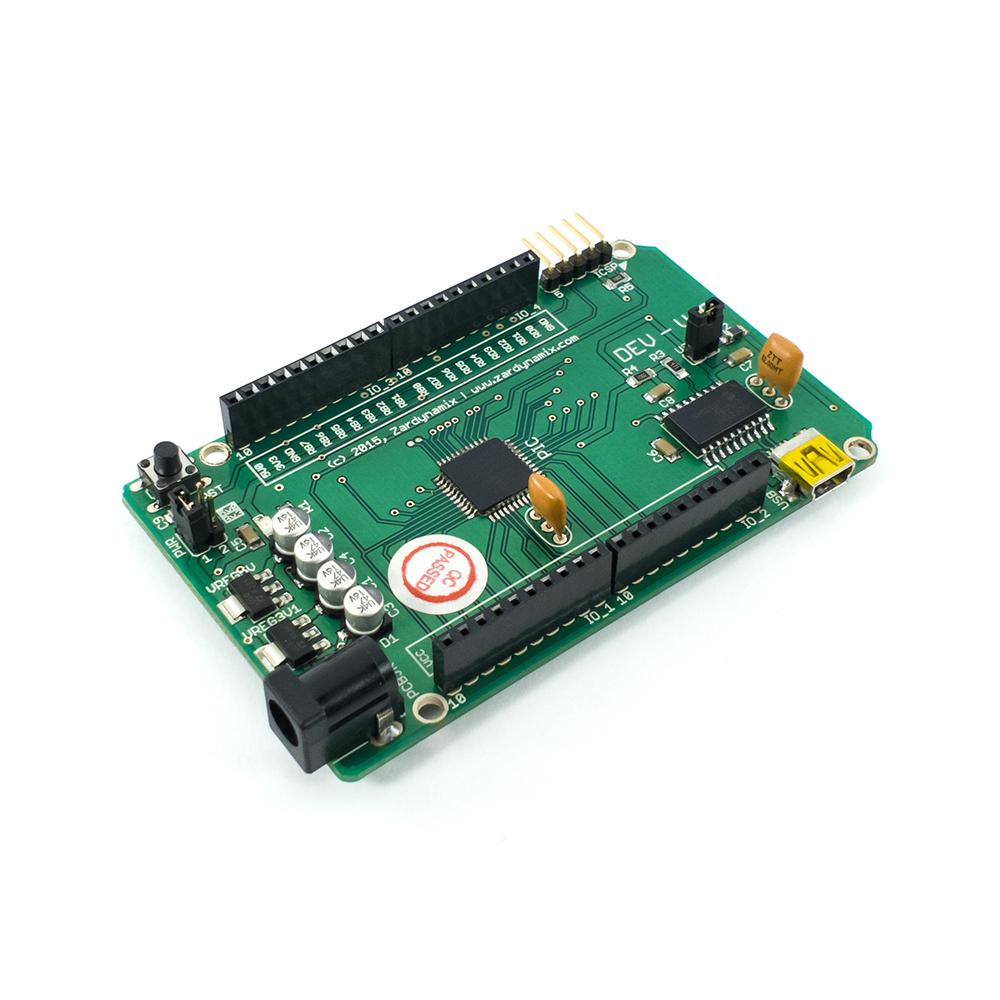

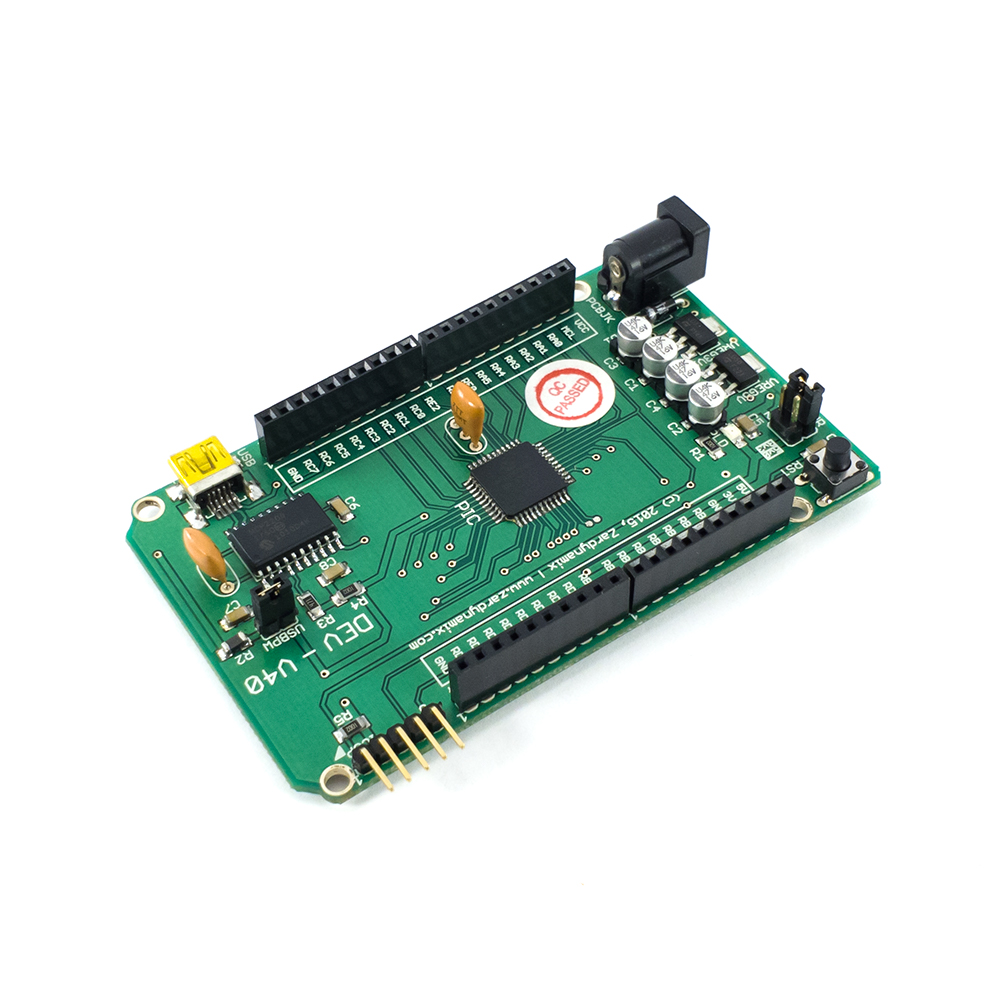

DEV-40 is a compact and versatile PIC development PCB, economized for size and portability. Supplied with a PIC18F45K22, the PCB delivers an efficient and effective development experience. The PCB includes USB to UART functionality (Useful for bootloading), a selectable power supply, an ICSP header, and all I/O pins broken out to headers.
These boards are Proudly South African – Designed, assembled and supported by Haventechnik, a local company based in Johannesburg.
Please Note: You will require an external programmer such as a PICkit to program this board.
Features / Specs
- Microcontroller: Microchip PIC18F45K22
- USB Interface IC: Microchip MCP2200
- USB Connector: Mini USB (Enable USB power by shorting “USBPW” jumper)
- Operating Voltage：5VDC / 3.3VDC (Selectable with “PWR” jumper)
- DC Jack Input Voltage (Max): ~9VDC
- DC Jack Size Category: 2.1mm x 5.5mm
- DC Jack Compatibility: Mates with any opposite gender DC jack in the same size category
- On-Board Oscillator Frequency: 8MHz
- Available I/O Pins: 30 (Ports A, B, C, D, E)
- Analog Input Channels: 28
- Flash Memory: 32kB
- SRAM: 1536 Bytes
- EEPROM: 256 Bytes
- Bootloader: Compatible with Mikroe Bootloader (No Bootloader pre-installed)
- ICSP Interface: Broken out to 5-Pin header labelled “ICSP”
- Board Dimensions: ~(92mm x 55.8mm x 15mm)
