FT232 USB-Serial Converter Type 2
R131,56
Package Includes
- 1x FT232 USB-Serial Converter – Type 2
- 1x Set of 4-Way F-F Jumper Wires
Our Customer Guarantee:
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description

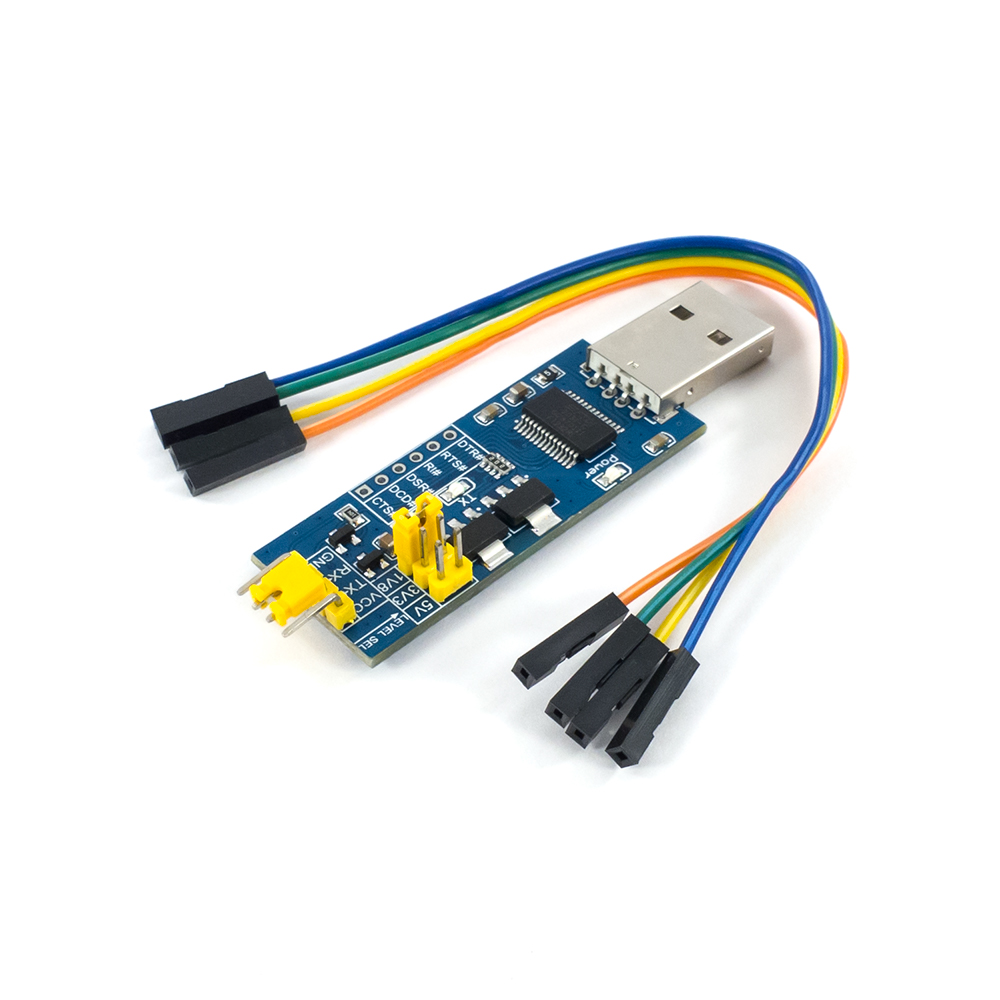

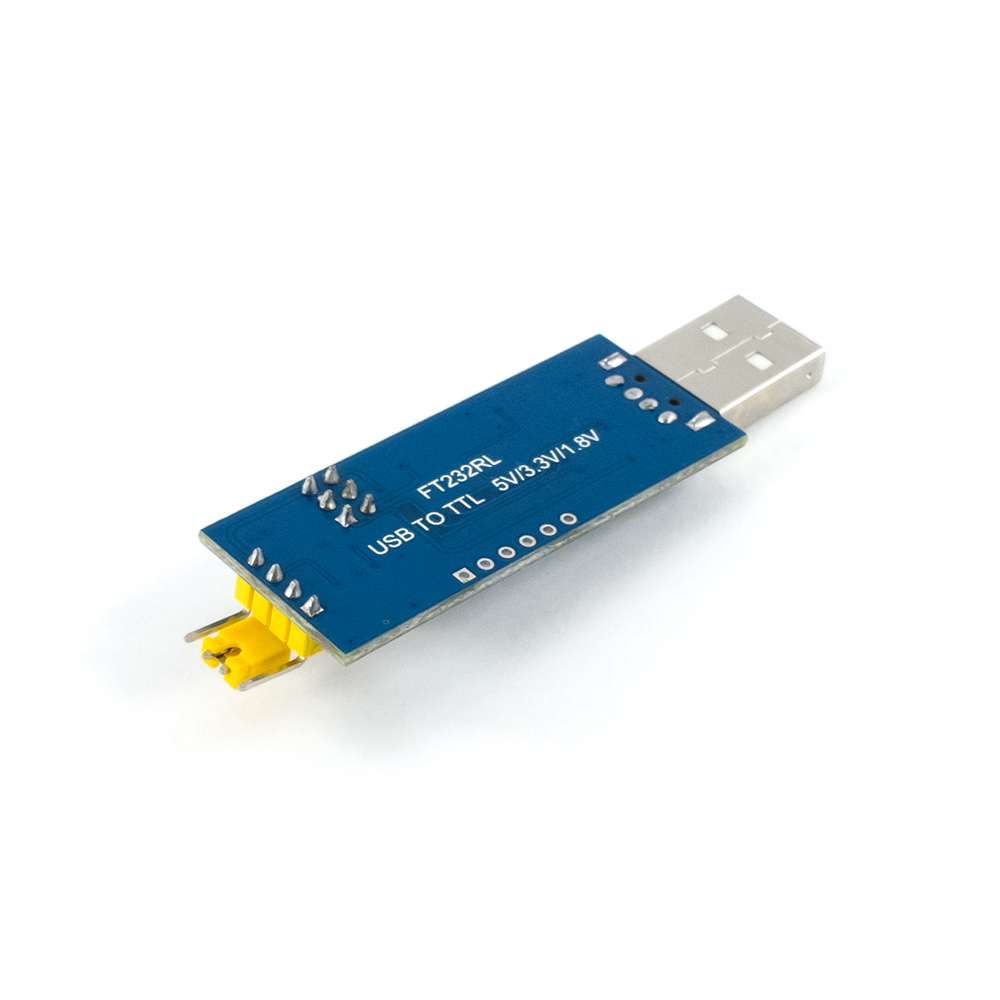

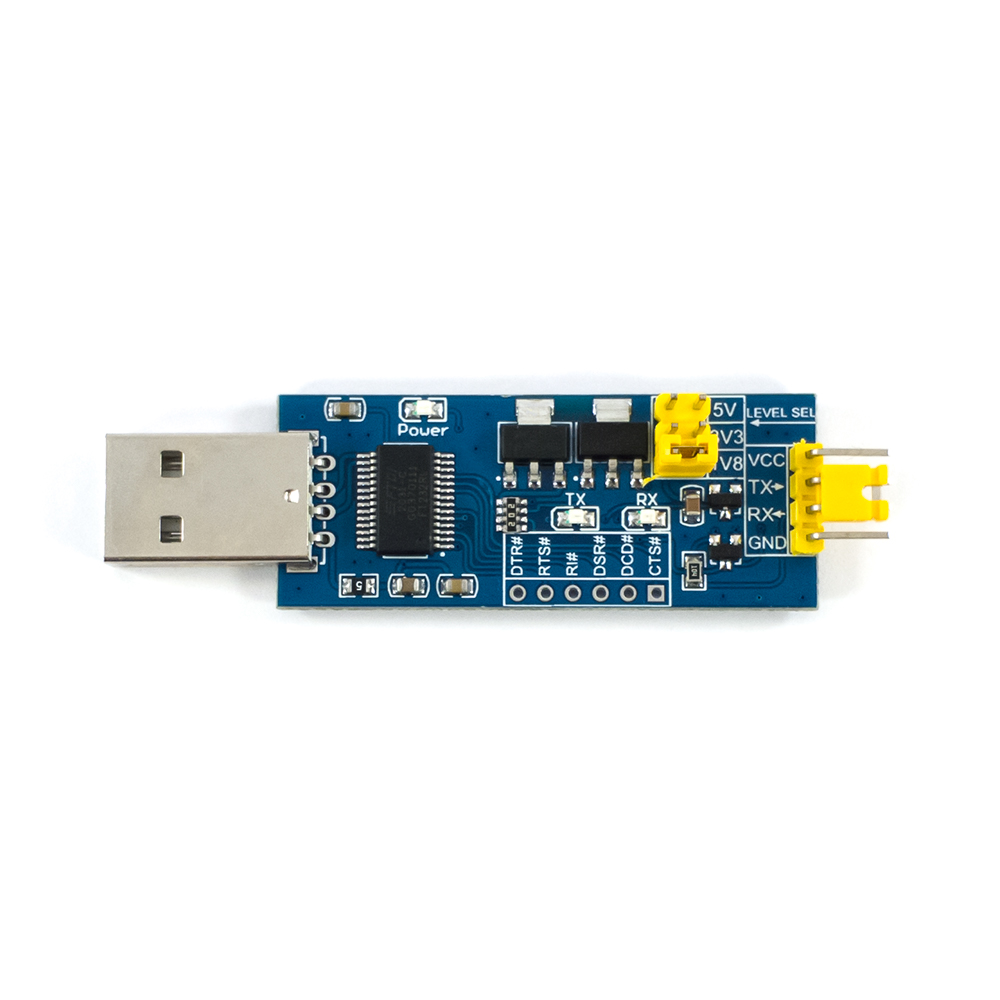

This USB to Serial Adapter board makes use of an FT232RL USB-Serial converter chip to allow UART devices to communicate with applications on a PC. It has indication LED’s for Rx and Tx communication as well as a jumper which allows you to switch between 3 different target supply options (5V / 3.3V / 1.8V).
Features / Specs
- USB-Serial Chip: FTDI FT232RL
- USB Connector: USB Male Type-A Connector
- Indication LED’s: Power / Rx / Tx
- Selectable target supply and logic level of UART – 5VDC / 3.3VDC / 1.8VDC
- Protection: On-board 500mA USB 5V supply resettable fuse
- Header Pin Pitch: 2.54mm
- Dimensions: ~(71.5mm x 20mm x 11.5mm)
