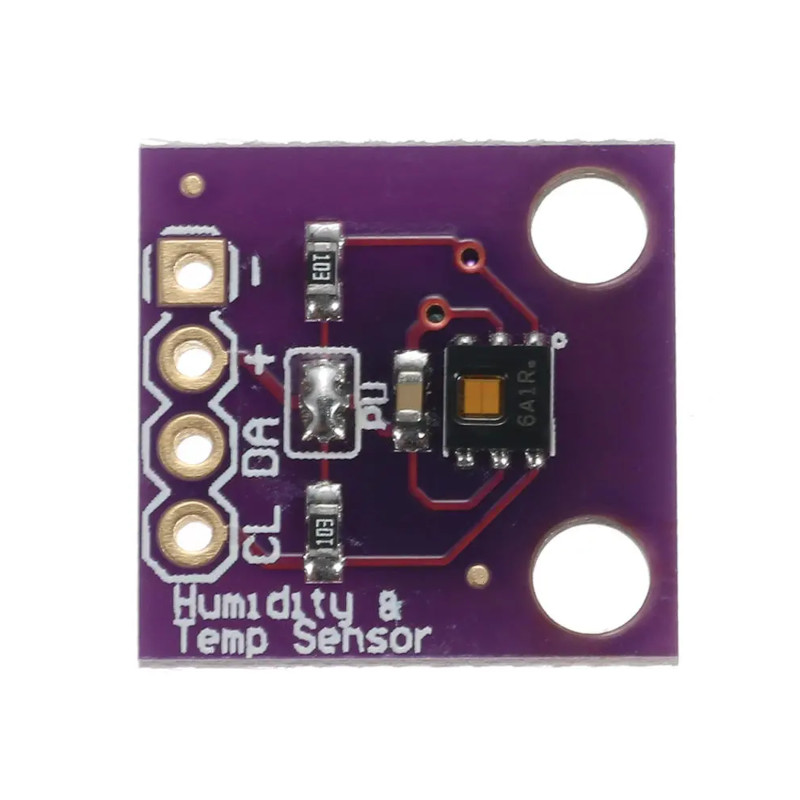

HDC1080 Temp + Humidity Sensor

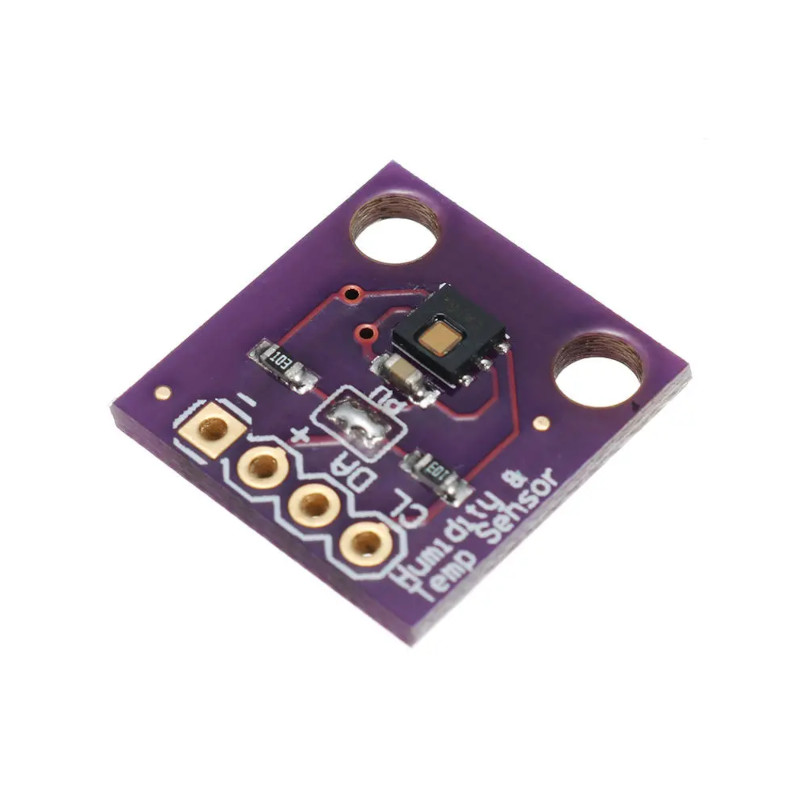

HDC1080 Temp + Humidity Sensor - Image 2
HDC1080 Temp + Humidity Sensor - Image 3

HDC1080 Temp + Humidity Sensor

R160,16

Package Includes

  • 1x HDC1080 Temp + Humidity Sensor Module
  • 1x 4-Way Straight SIL Pin Header

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 0ME1651 Category:

Description

Features / Specs

  • Model: GY-213-HDC1080
  • Sensor: Texas Instruments HDC1080
  • Operating Voltage: 2.7 – 5.5VDC
  • Relative Humidity Measurement Range: 0 – 100%RH
  • Relative Humidity Measurement Accuracy (Typical): ±2%RH
  • Resolution: 14-Bit
  • Temperature Measurement Accuracy: ±0.2°C
  • Operating Temperature Range: -40 to +125°C
  • Average Supply Current: 1.2uA @ 1 sample/sec
  • Comms Interface: I2C (Up to 400kHz)
  • Standard 2.54mm Header Pin Pitch

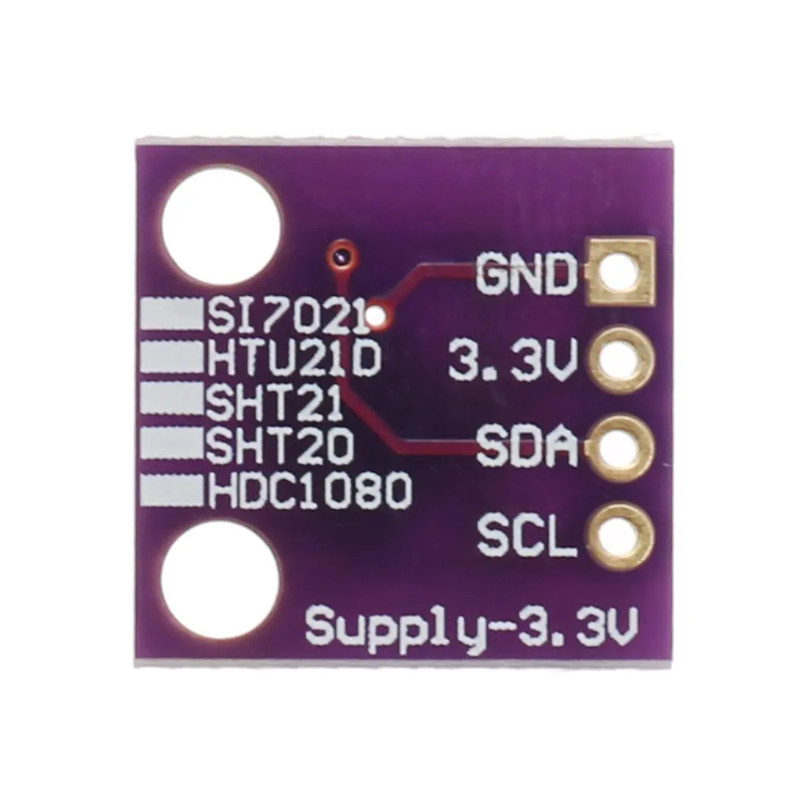

Pin Description

  • GND-> Ground
  • 3.3V-> Supply Voltage (2.7 – 5.5VDC)
  • SDA-> I2C Serial Data
  • SCL-> I2C Serial Clock
