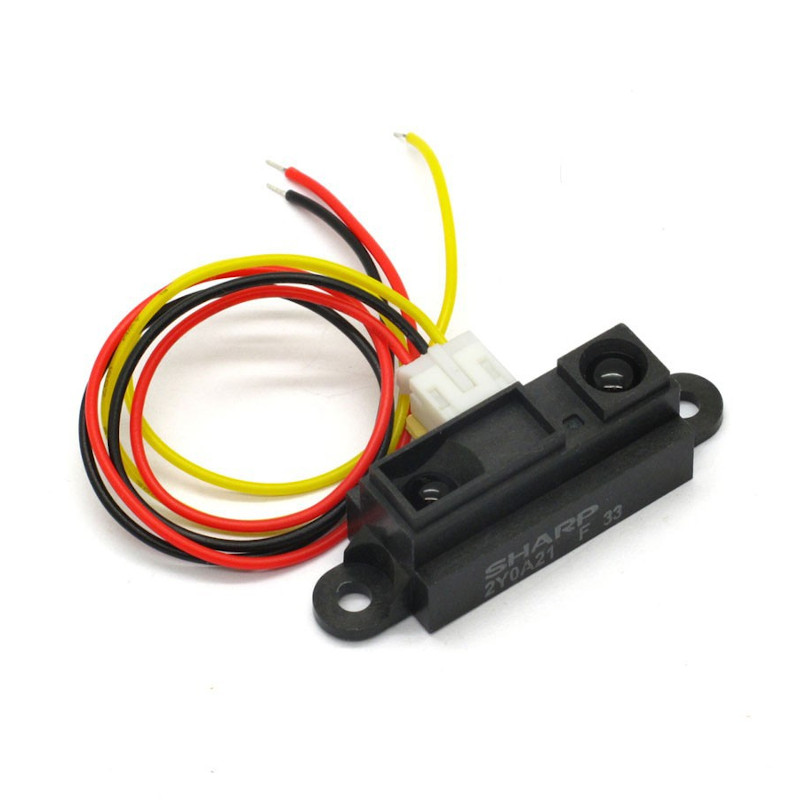

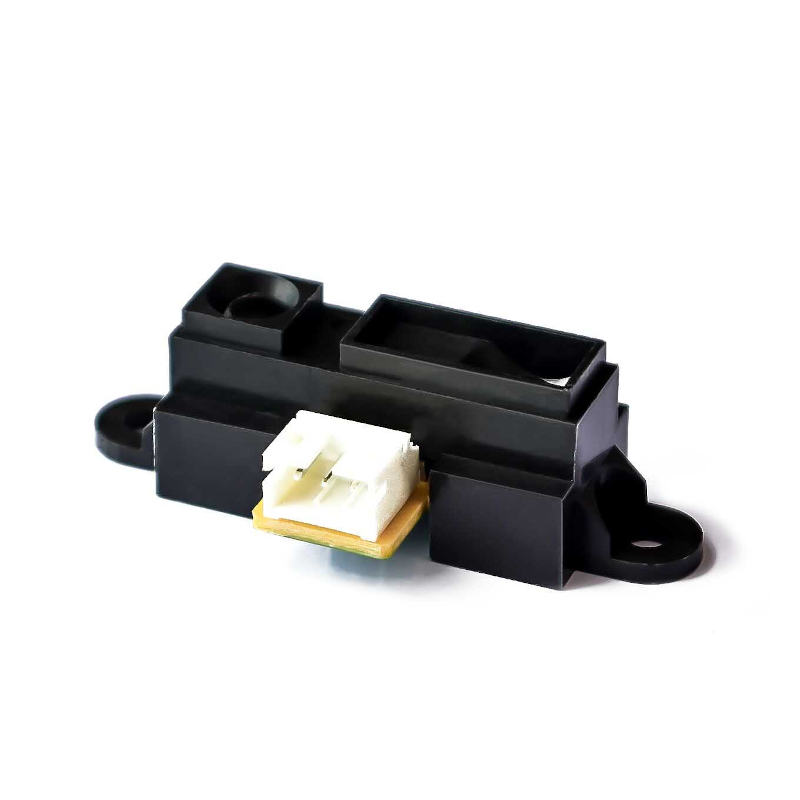

Infrared Distance Sensor 2Y0A21
R235,95
Package Includes
- 1x 2Y0A21 Infrared Distance Sensor
- 1x 3-Wire Cable With Connector
Our Customer Guarantee:
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Features / Specs
- Sensor: Sharp GP2Y0A21YK0F
- Operating Voltage Range: 4.5 – 5.5VDC
- Operating Current: 30mA (Averaged value since the sensor draws current in larger, short bursts)
- Sharp recommends a 10uF or larger capacitor across power and ground close to the sensor to stabilize the power supply line
- Detection Range: 10 – 80cm
- Output Type: Analog
- Output Voltage Differential Over Distance Range: 1.9V (Typical)
