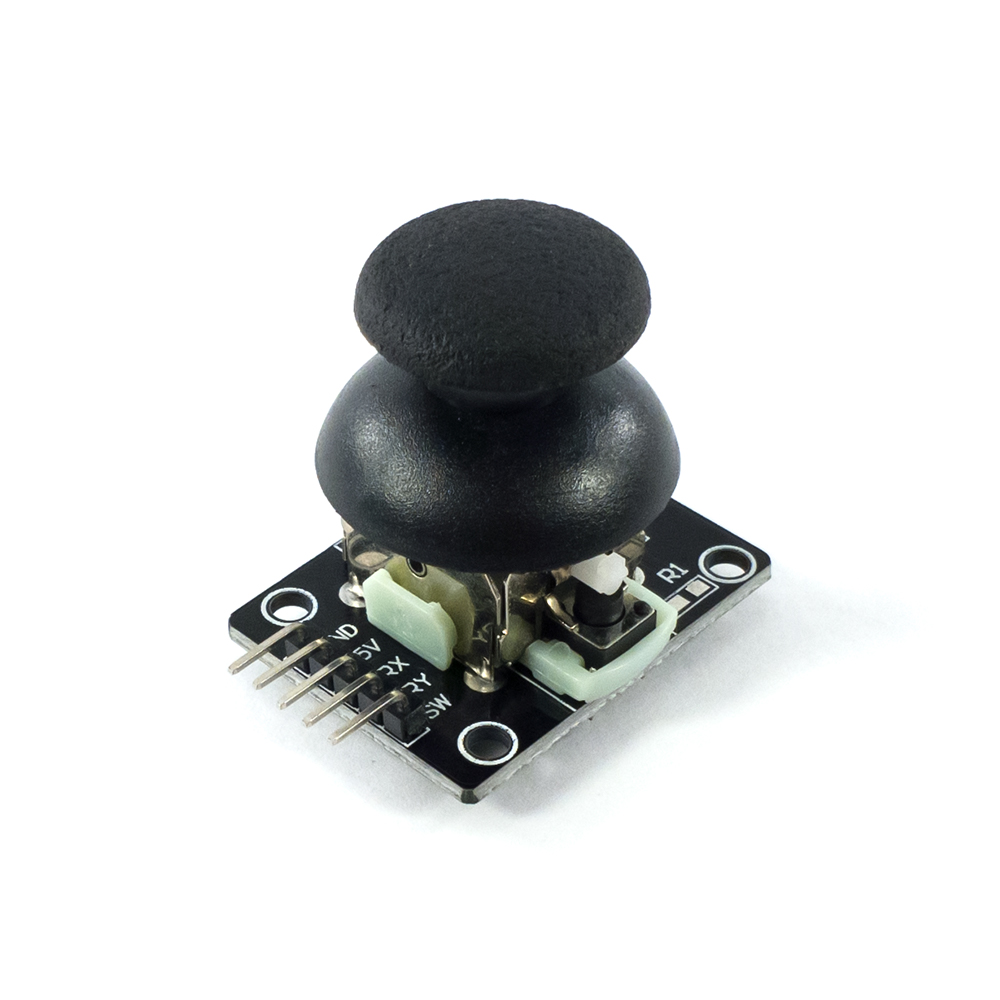

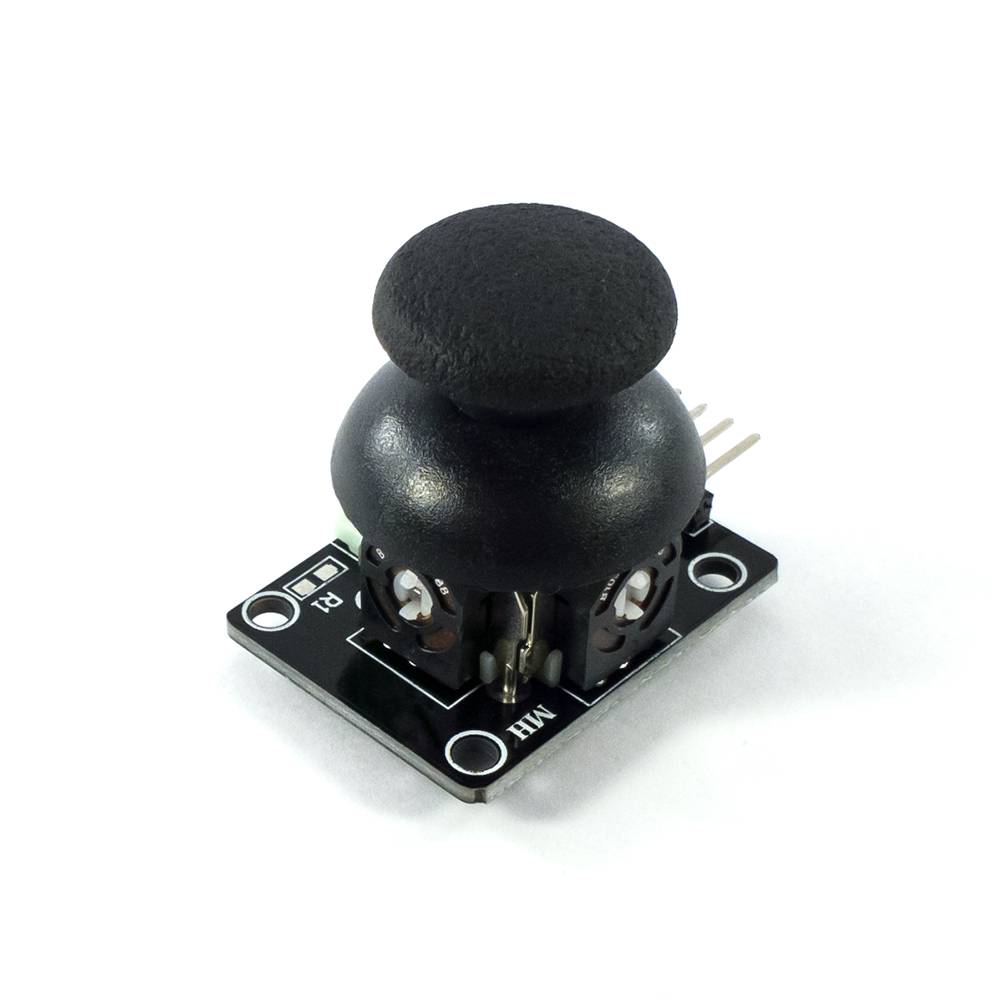

Joystick Module Type 1
Joystick Module Type 1 - Image 2
Joystick Module Type 1 - Image 3

Joystick Module Type 1

R20,74

Package Includes

  • 1x Joystick Module – Type 1

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 4ME4450 Category:

Description

Features / Specs

  • Operating Voltage: 5VDC
  • Operation Axes: X and Y axes with a push down click
  • Header Pin Pitch: 2.54mm
  • PCB Dimensions: ~(34mm x 26mm)
  • Joystick Height From PCB: ~30mm
  • Joystick Handle Diameter: ~20mm
  • Mounting Hole Diameter: ~3.05mm
  • Mounting Hole Spacing (Center to Center): ~(26mm x 20.4mm)

Pin Description

  • GND-> Ground
  • +5V-> Supply Voltage (5VDC)
  • VRX-> X-Axis Analog Output
  • VRY-> Y-Axis Analog Output
  • SW-> Button Press Output
