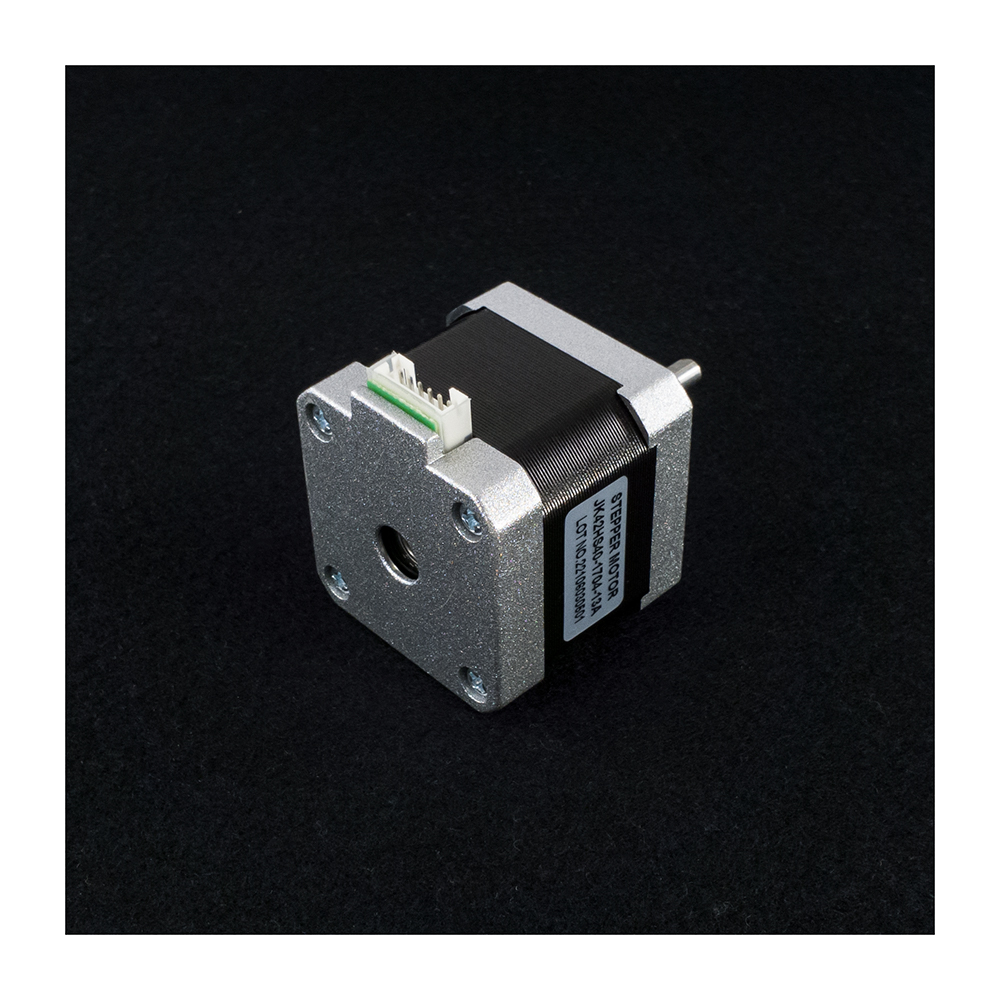

NEMA 17 Stepper Motor Type 1

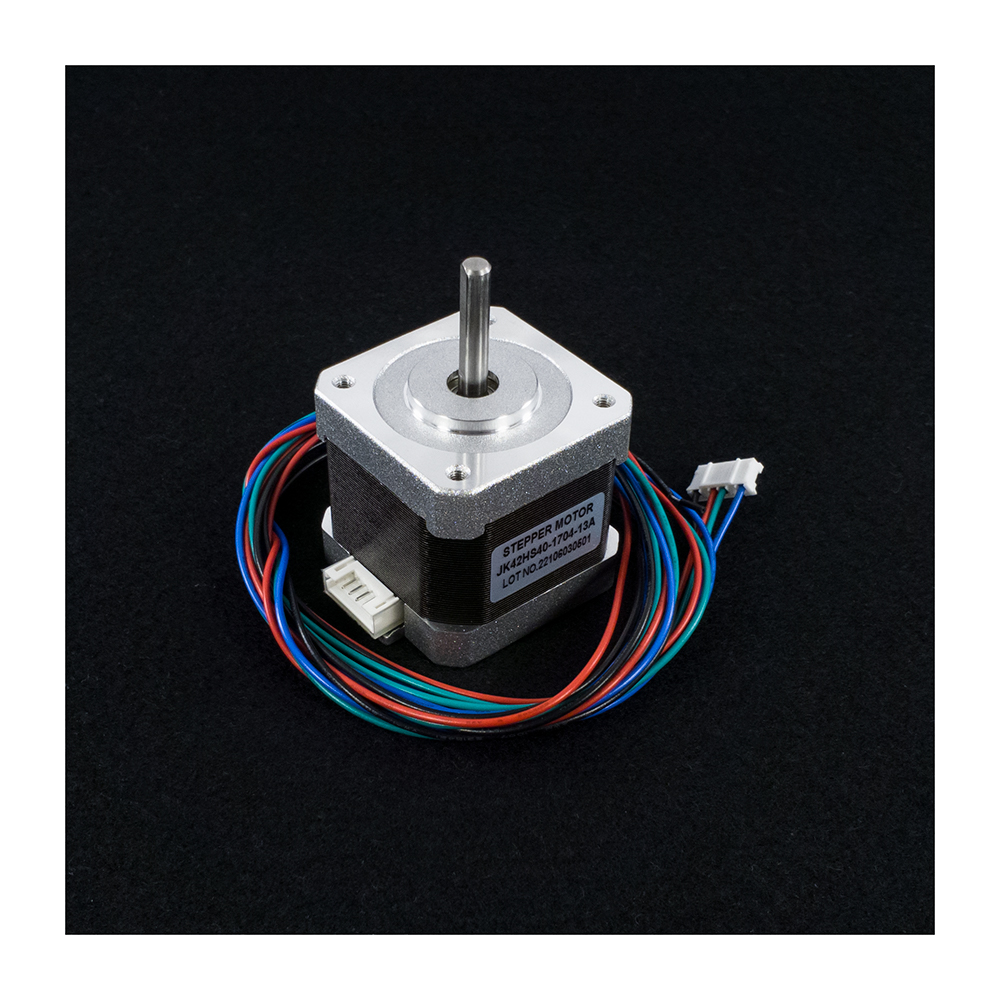

NEMA 17 Stepper Motor Type 1 - Image 2

NEMA 17 Stepper Motor Type 1

R340,34

Package Includes

  • 1x NEMA 17 Stepper Motor – Type 1
  • 1x One Meter 4-Way Cable With Connector

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 9ME2502 Categories: ,

Description

Features / Specs

  • Motor Type: Stepper Motor
  • Model: NEMA 17
  • Manufacturer: JKONGMOTOR
  • Part Number: JK42HS40-1704-13A
  • Number of Phases: 2
  • Step Angle: 1.8° (200 Steps per Revolution)
  • Rated Voltage: 2.55V
  • Rated Current / Phase: 1.7A Peak
  • Phase Resistance: 1.5Ω ±10% (20°C)
  • Phase Inductance: 2.3mH ±20% (1kHz 1V RMS)
  • Holding Torque: 4.2kg·cm
  • Number of Wires: 4
  • Cable Length: 1 Metre
  • Wire Specs: 26AWG / UL1007
  • Motor Length: 39.5mm ±1mm
  • Motor Weight: 0.24kg
