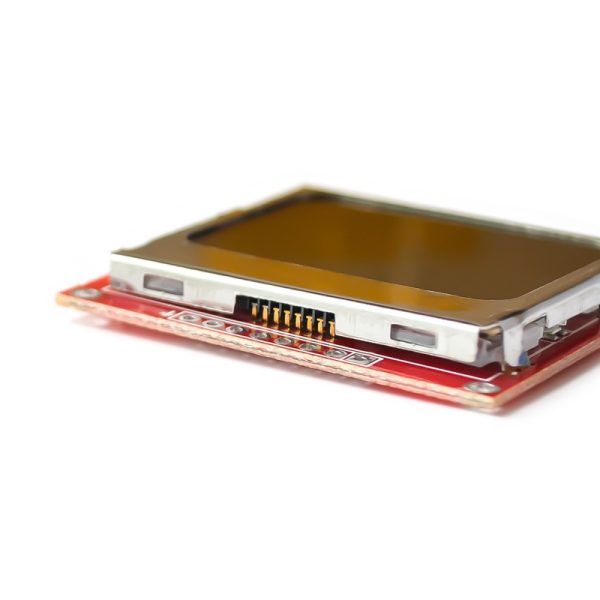

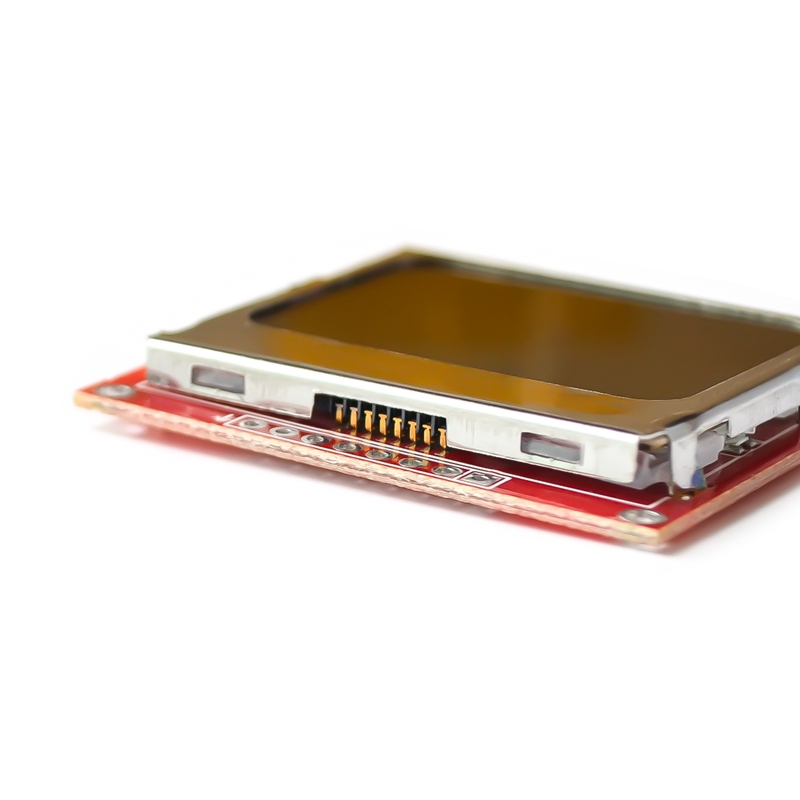

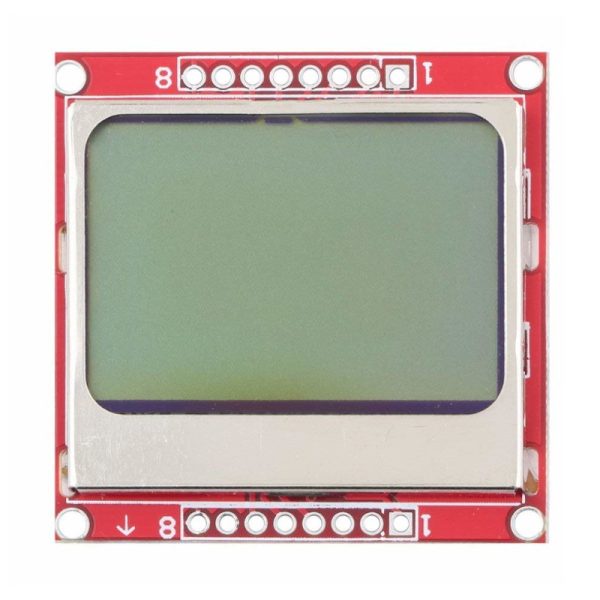

Nokia 5110 LCD Module
Nokia 5110 LCD Module - Image 2
Nokia 5110 LCD Module - Image 3
Nokia 5110 LCD Module - Image 4
Nokia 5110 LCD Module - Image 5

Nokia 5110 LCD Module

R140,14

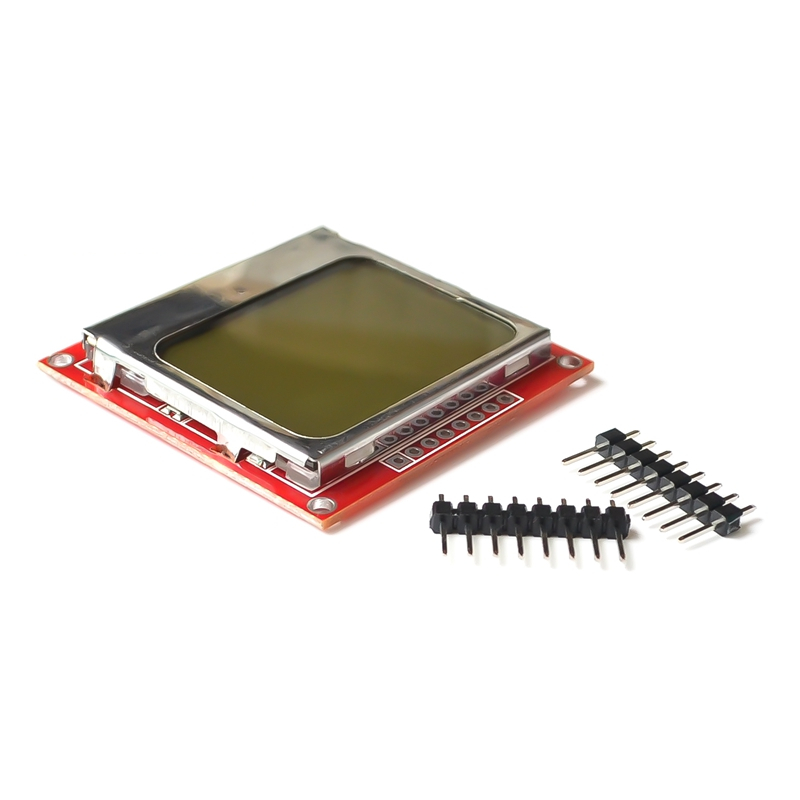

Package Includes

  • 1x Nokia 5110 LCD Module
  • 2x 8-Way SIL Straight Pin Headers

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 4ME3675 Category:

Description

These Nokia 5110 display modules use LCD’s taken from disassembled Nokia mobile phones, and we all know the reputation that the older Nokia phones have. By combining these displays with a custom breakout board they have been given a second lease on life, and can now find a new home in your next project.

Features / Specs

  • Display Size: 1.8 Inch (28mm x 35mm)
  • Resolution: 84×48 Pixels (4 Lines of characters)
  • Driver IC: Philips PCD8544
  • Comms Interface: 4-Wire SPI
  • Operating Voltage: 2.7VDC – 3.3VDC
  • Backlight Supply Voltage: 3.3VDC
  • Backlight Colour: Blue
  • Operating Current: 6mA

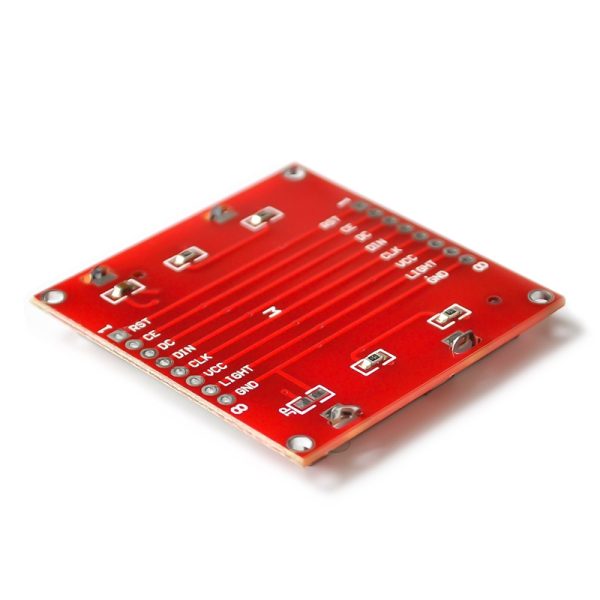

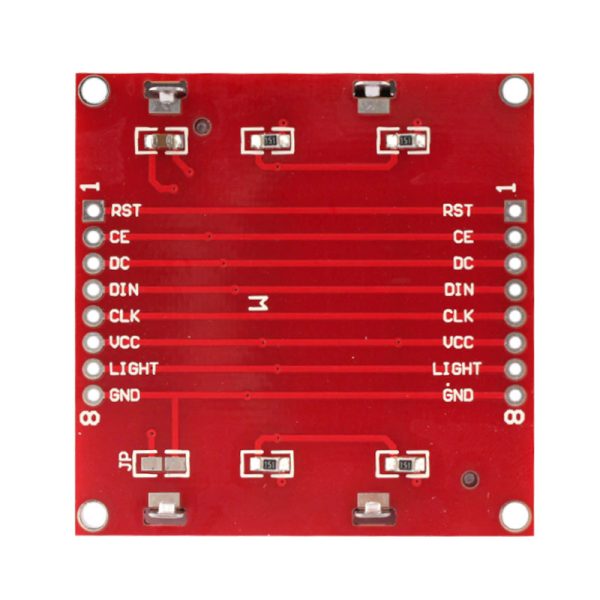

Pin Description

  • RST-> Reset
  • CE-> Chip Select
  • DC-> Mode Select
  • DIN-> Serial Data In (MOSI)
  • CLK-> Serial Clock
  • VCC-> Module Supply Voltage (2.7 – 3.3VDC)
  • LIGHT-> Backlight Supply Voltage (3.3VDC)
  • GND-> Ground
