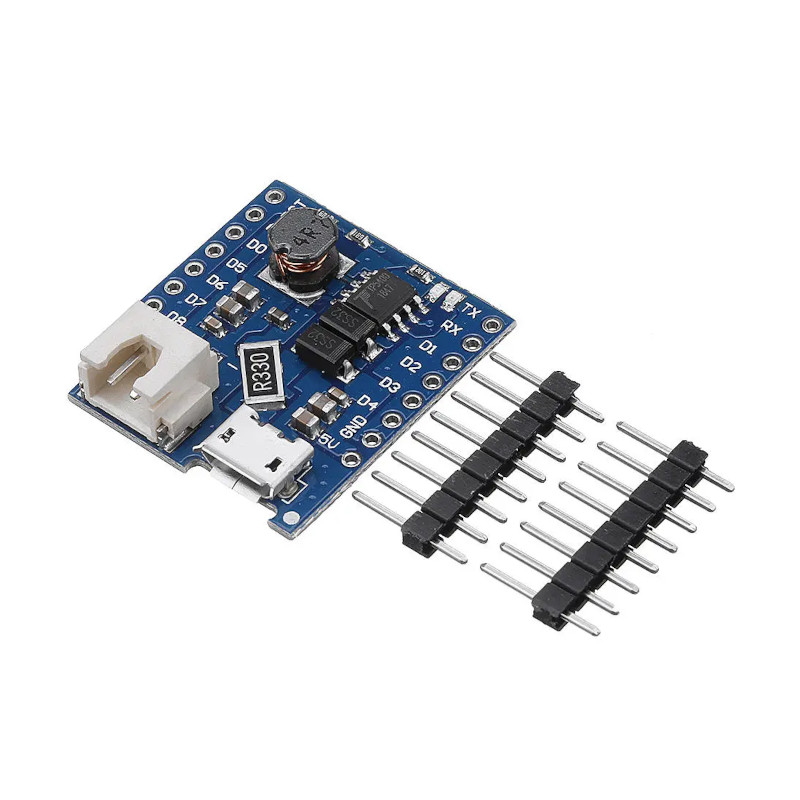

Wemos D1 Mini LiPo Shield

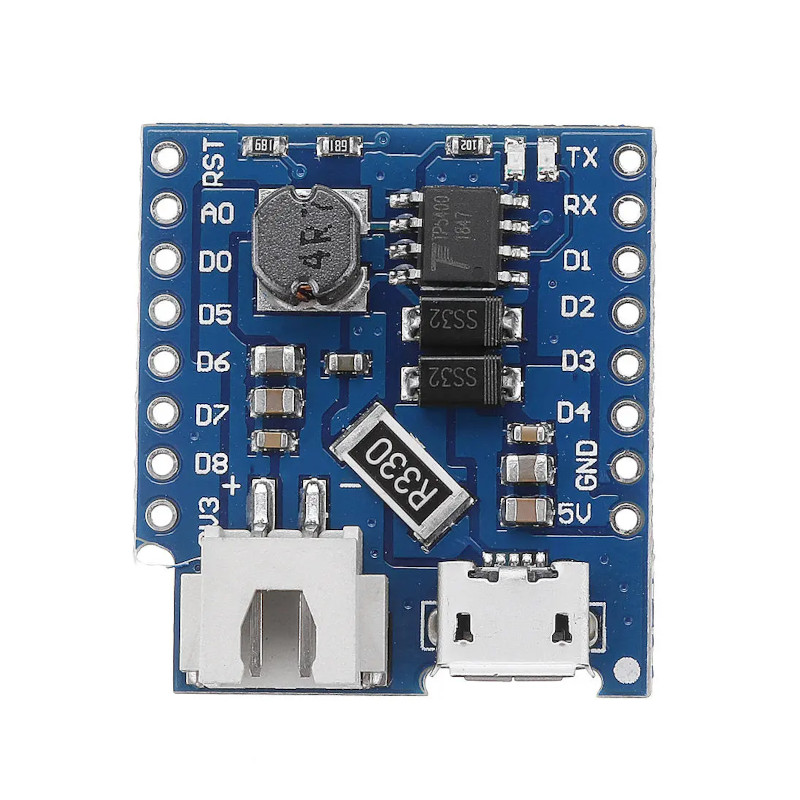

Wemos D1 Mini LiPo Shield - Image 2

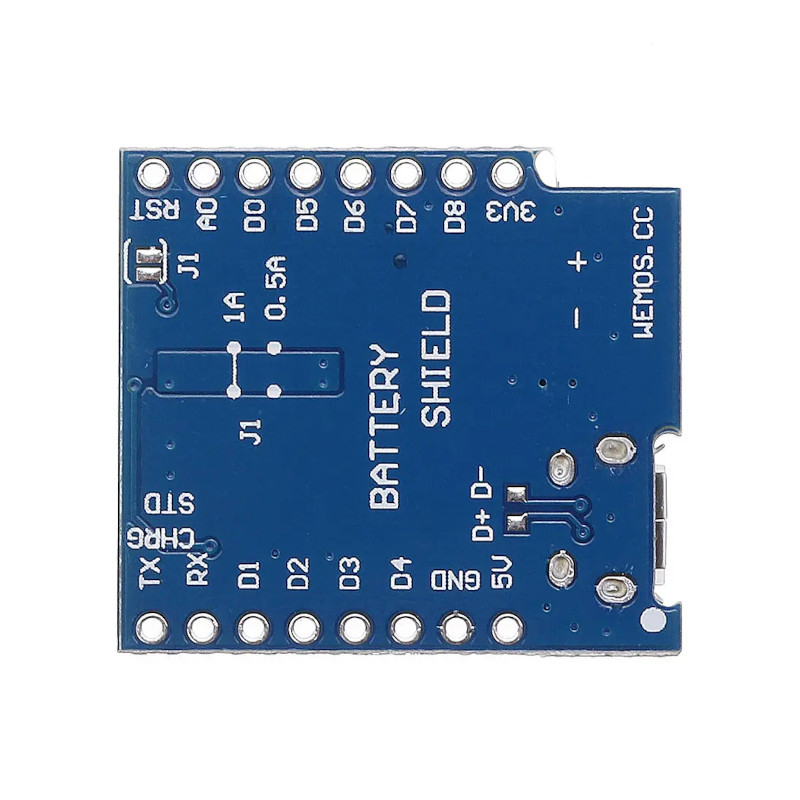

Wemos D1 Mini LiPo Shield - Image 3

Wemos D1 Mini LiPo Shield

R55,77

Package Includes

  • 1x Wemos D1 Mini LiPo Shield
  • 2x 8-Way Straight SIL Pin Headers

Our Customer Guarantee:

  • Check Mark Satisfaction Guaranteed
  • Check Mark No Hassle Refunds
  • Check Mark Secure Payments
SKU: 3ME3505 Category:

Description

This shield for the Wemos D1 Mini allows you to power your Wemos and any other connected shields directly from a Lithium Polymer battery. If the connected battery needs to be recharged, all you need to do is plug in a micro-USB cable connected to a 5VDC USB socket and the shield will handle the recharge of the connected battery.

Features / Specs

  • Charger Supply: 5VDC with at least 1A current capability
  • Max Charge Current: 0.5A / 1A (Use J1 to select charge current)
  • Lithium Battery Voltage: 3.3 – 4.2VDC
  • USB Socket: Micro-USB
  • Battery Connector Socket: XH2-2.54MM
  • Red LED indicates charge in progress. Green LED indicates charge complete
